Epad RV5 Control Screen

Bluetti Epad Central Control Screen

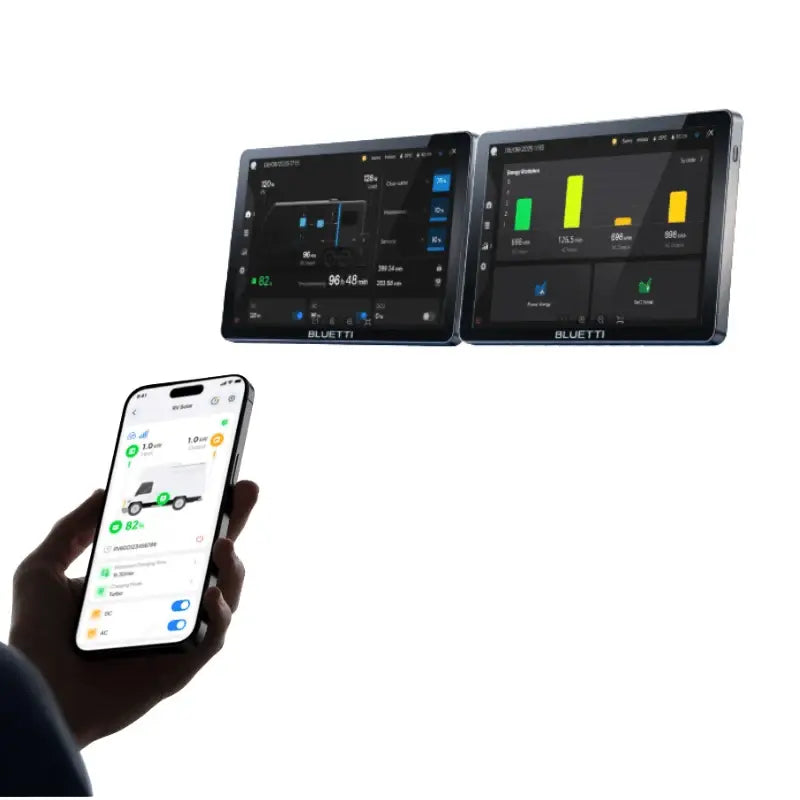

The Bluetti Epad is a 10.1-inch central control screen designed to monitor and manage a Bluetti energy system from a single interface. When connected to the RV5 power hub and Epanel, it provides real-time visibility into energy flow, battery status, electrical loads and compatible sensors throughout your RV, camper van, boat or off-grid installation.

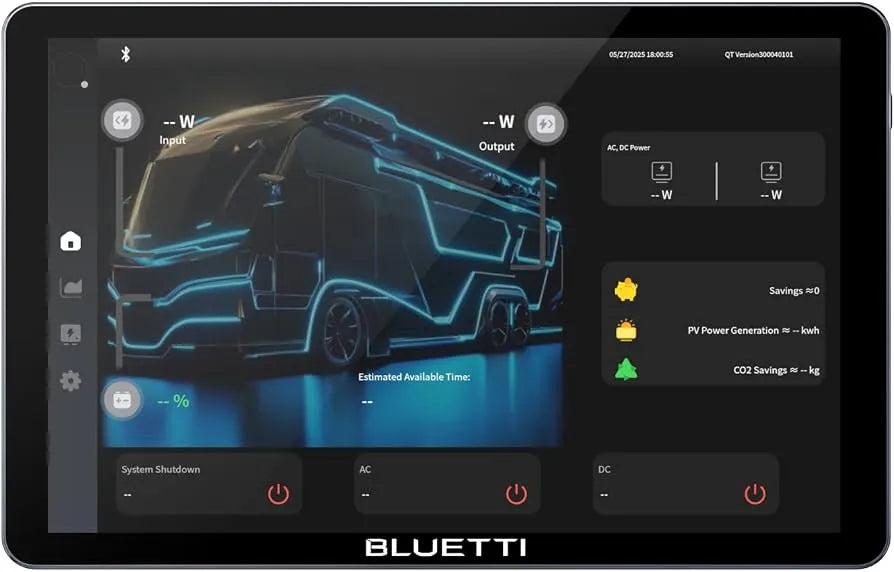

Its colour touchscreen provides a clear overview of the complete system, helping you manage multiple functions without constantly switching between different devices or apps. Its RJ45-format CAN connections also simplify integration with compatible Bluetti components.

• Display: 10.1-inch capacitive LCD touchscreen with 1280 × 800 resolution.
• CAN connection: 2 non-isolated RJ45 CAN ports for RV5 or Epanel.
• Ethernet: 10/100 Mbps with auto-negotiation.
• Wireless connectivity: Built-in Wi-Fi and Bluetooth 5.2.
• Sensors: Supports temperature, liquid-level and digital input monitoring.
• Storage: microSD slot supporting SDHC cards up to 32 GB.
• USB: 2 USB-A ports with 5 V / 1.5 A combined output.
• Power consumption: Approximately 6 W with the screen on and 2.5 W with the screen off.
• Dimensions: 247 × 158 × 34.2 mm without brackets.
• Weight: Approximately 0.67 kg without brackets.
• Operating temperature: -10°C to 55°C.
• Protection rating: IP20.

The Epad does more than simply display battery percentage. It acts as a central interface for your energy system, allowing you to monitor power inputs and outputs, view connected sensors and manage compatible equipment from one screen.

Bluetti Epad Compatibility

The Bluetti Epad is designed to work with the Bluetti RV5 power hub and the Epanel distribution panel. The RV5 acts as the core of the electrical system, while the Epad provides an easily accessible monitoring and control interface inside the vehicle or installation.

The system also supports RV-C and NMEA 2000 protocols, helping integrate compatible third-party devices and equipment. This makes it possible to build a more centralized electrical management system for an RV, boat or camper van.

RV, Camper Van and Off-Grid Applications

In an RV or camper van, the Epad lets you quickly check the status of your electrical system at a glance. Battery levels, energy production, consumption and connected equipment can all be monitored from one interface.

During multi-week trips or extended off-grid travel, this visibility makes energy management much easier. You can identify unusual power consumption, monitor your remaining energy reserves and adjust your usage before the batteries reach a low state of charge.

The Epad is also well suited to cottages, boats and stationary off-grid systems that benefit from having a dedicated control interface available at all times, even when Internet access is limited.

Practical Tips for the Bluetti Epad

Install the display in a location that is easy to see and reach from the main living area of your vehicle or cottage. Avoid areas directly exposed to water or weather, as the Epad carries an IP20 protection rating.

Connect compatible components according to Bluetti's installation instructions before powering up the system for the first time. Once configured, periodically inspect your sensors and connections to maintain reliable monitoring.

It is also recommended to keep your system software and firmware updated whenever new versions are made available by Bluetti. This helps ensure access to the latest control features and system improvements.
